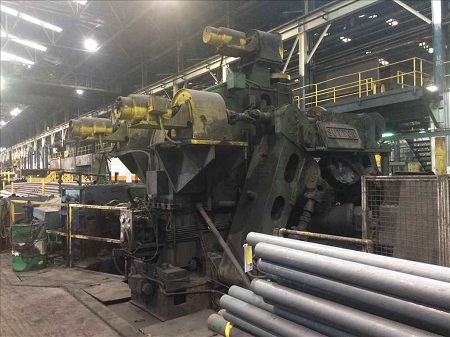

7.5" (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER   Our stock number: 113162

7.5 (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER

Click on picture below for larger version
7.5 (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER7.5 (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER7.5 (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER7.5 (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER

7.5" (190mm) SUTTON 4KTC SEVEN ROLL TUBE STRAIGHTENER

MANUFACTURER - SUTTON
S/N - 1164
PRODUCT CAPABILITY - SEAMLESS TUBING AND CASING
TUBE RANGE - 3.5"-7.5" OD (88mm-190mm)
STATUS - INSTALLED IN USA PLANT
ROLL CONFIGURATION - 3-1-3
DRIVEN ROLLS - 2 (BOTTOM)
IDLE ROLLS - 4
PRESSURE ROLL - 1
MAXIMUM MACHINE OPENING - 10.623" (269mm)
MINIMUM MACHINE OPENING - 2.982" (75mm)
CENTER DISTANCE BETWEEN DRIVEN ROLLS - 68" (1727mm)
STRAIGHTENING SPEED - 40-160 FPM (12-48 MPM)
MAIN MOTOR - 150/200 HP, 300/1200 RPM
LINE DIRECTION - LEFT TO RIGHT (FACING MACHINE OPERATOR SIDE)

LINE INCLUDES ENTRY AND EXIT FEED TABLES CAPABLE OF STRAIGHTENING 45 FOOT

(13.7 METER) LONG TUBES
