1. Name: Bronx 6CR

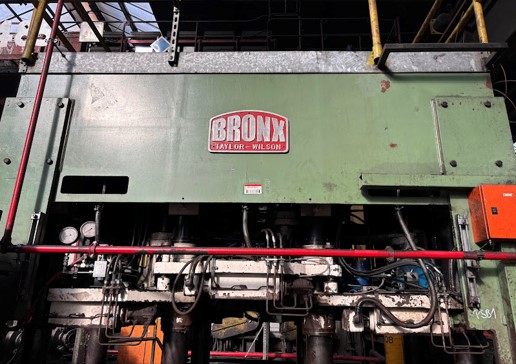

2. Brand: Bronx - Taylor Wilson
3. Model : 6CR-9
4. Year: 2013

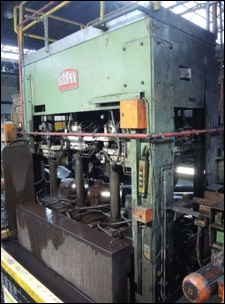

5. Description 6 rolls Straightening Machine
Main function is to eliminate any defects in pipe straightness due to thermal

shocks during the heat treatment production process.

Technical data

6. Volts 500V
7. Current-
8. Power 450Kw
9. Frequency 50Hz

10. Capacity (OD, lenght, thickness)
OD Plain end pipes Dia: 60,3 - 177,8 mm (2 7/8" - 7")

Thickness Up to 25mm (1")
Pipe lenght 12 - 14 m
API grade: Q125, P110, N80, L80

11. Production capacity
155.000 MT annual @ 21 shifts per week
430.000 pipes per year
5.760 operation hours per year"

12. Components & parts

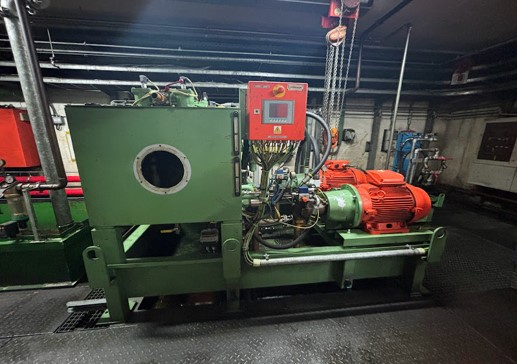

Entry channel, exit channel, hydraulic unit, main

motors, hydraulic motors, control and power system, load cells.

13. Accessories Second rolls set, tools for rolls changes
