Click on picture below for larger version

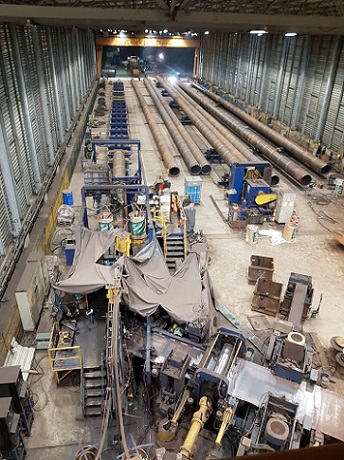

2235MM X 20MM API OZEMEK SPIRAL PIPE MILL YEAR 2004 (MOBIL SPIRAL MILL WITH

OPTIONAL 30,690 FT/2 MOBIL BUILDING



STANDARDS:
-OIL & GAS PIPES: API 5L, ISO 3183, EN 10208-1/2
-WATER PIPES: EN 10217-1, EN 10224, AWWA C200
-PILING PIPES: ASTM A252, EN 10219-1/2
OUTSIDE DIAMETER RANGE: 323.9MM - 2235.2MM
WALL THICKNESS: 4MM - 20MM
PIPE LENGTH: 6M - 16M
MAX COIL WIDTH: 1500MM

OUTSIDE DOUBLE TANDEM SUBMERGED ARC WELDING EQUIPMENT:
-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE
-LINCOLN AC 1200 POWER SOURCE (1200 A), NA-4 CONTROL UNIT- 1 PIECE
-META VISION LASER SEAM TRACKING SYSTEM - 1 PIECE

INSIDE DOUBLE TANDEM SUBMERGED ARC WELDING EQUIPMENT:
-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE
-LINCOLN AC 1200 POWER SOURCE (1200 A), NA-4 CONTROL UNIT- 1 PIECE
-META VISION LASER SEAM TRACKING SYSTEM - 1 PIECE

SKELP END WELDING UNIT:
-LINCOLN DC 1500 POWER SOURCE (1500 A), NA-5 S CONTROL UNIT- 1 PIECE

SKELP END CUTTING UNIT:
-HYPERTHERM, HPR 260 XD, HIGH PERFORMANCE PLASMA ARC CUTTING SYSTEM (260 A)- 1

PIECE

PIPE CUTTING UNIT:
-HYPERTHERM, HPR 260 XD, HIGH PERFROMANCE PLASMA ARC CUTTING SYSTEM (260 A) -

1 PIECE

COMPLETE MILL FEATURING:
(1) EDGE MILLING MACHINE
(1)MILLING SYSTEM FOR EXTERNAL WELDING
(4) LINCOLN WELDING MACHINES
(2) METAVISION LASER SEAM TRACKING SYSTEMS
(2) HYPERTHERM PLASMA CUTTING SYSTEMS
WELD ENGINEERING FLUX RECOVERY SYSTEM

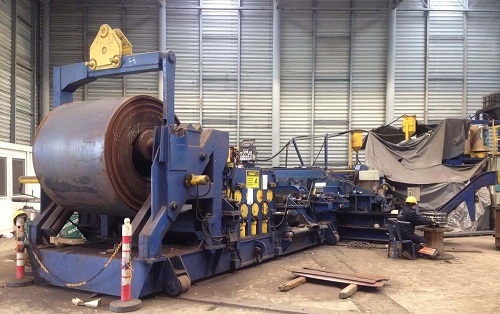

UNCOILER
EDGE GUIDES
FLATTENER
EDGE GUIDES
CROSS SEAM WELDER WITH HYDRAULIC CLAMPING
EDGE GUIDES
EDGE GUIDES
EDGE MILLING MACHINE
EDGE GUIDES
MAIN DRIVE ROLL
PRE-BENDER

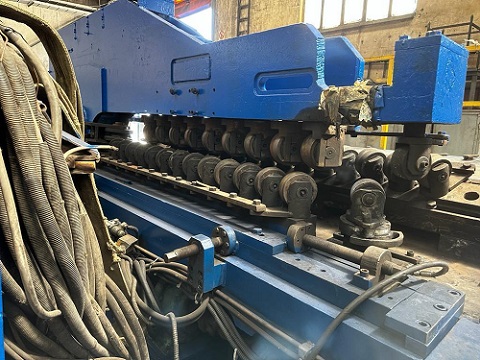

FORMING ROLL
PLASMA CUT-OFF

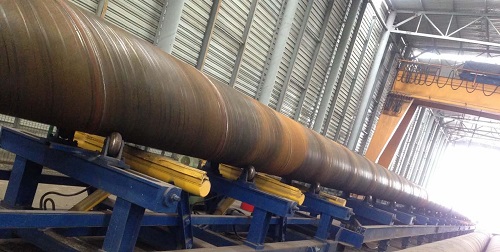

RUN OUT CONVEYOR
MOBIL OD SHOT BLAST UNIT
MOBIL SPIRAL MILL WITH OPTIONAL 30,690 FT/2 MOBIL BUILDING
90' SPAN X 35 TON OVERHEAD CRANE
