2 1/2" MCKAY COLD PILGER MILL REBUILT FOR CONTINUOUS OPERATION
Our stock number:
114109
Click on picture below for larger version

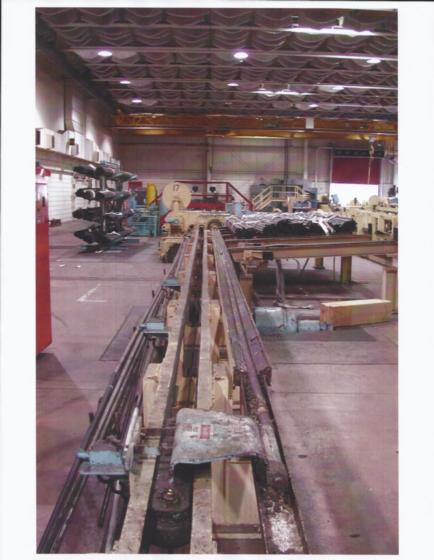

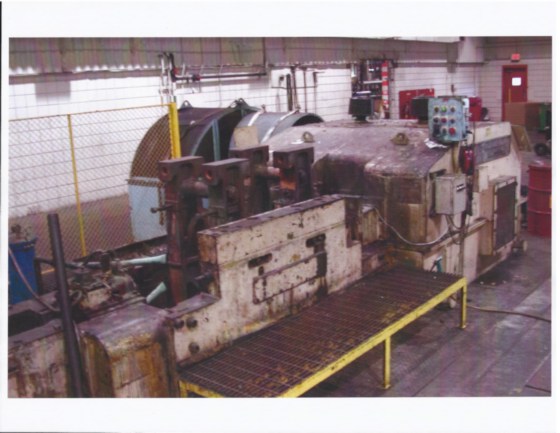

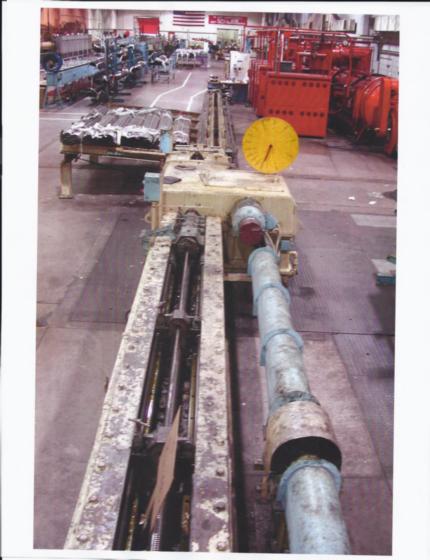

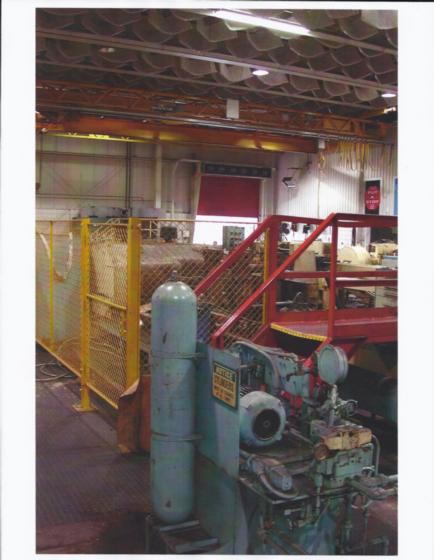

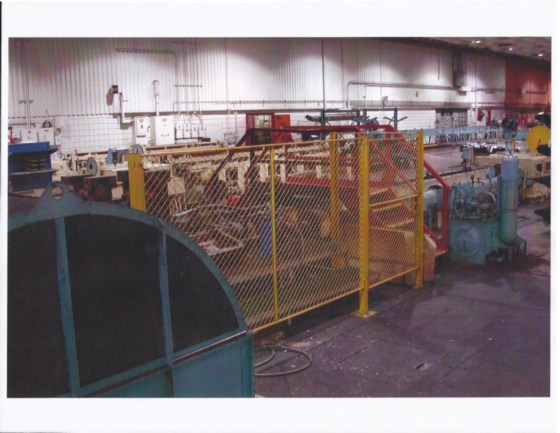

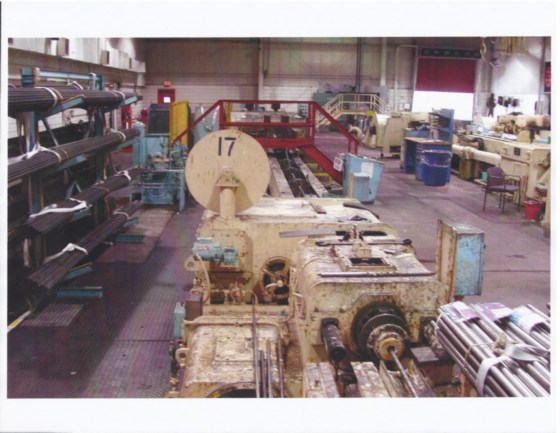

MCKAY 2-1/2" PILGER MILL UPGRADED TO CONTINUOUS OPERATION
MAXIMUM DIAMETER STARTING SHELL: 2 3/4"
FINISHED TUBE SIZE RANGE: 3/4" TO 2 1/4"
MAXIMUM LENGTH STARTING SHELL: 20' - 0"
DIE DIAMETER:
MAXIMUM: 14.250"
MINIMUM: 14.000"
WORKING DIE LENGTH: 18.50"
MACHINE SPEED RANGE: 55 TO 165 RPM
MACHINE FEED RANGE PER REVOLUTION: .080" - .700"
MAIN DRIVE MOTOR HP: 200
ELECTRICAL:
AC 220/440V, 3 PH, 60 CYCLE
DC 230V
CONTROL CIRCUITS 110V
TUBE TURNING:
ENTRY END 26 DEGREES - 4'
EXIT END 50 DEGREES - 04'
LOCATION, INSTALLED IN FACTORY USA
PURCHASE PRICE IS A BUDGET PRICE INCLUDING
REMOVAL AND TRANSPORTATION,
REPLACE SADDLE,
REBUILT CRANK
NEW FOUNDATION
NEW TOOLING (1SET)
FEED SYSTEM - MODIFIED BED (2), NEW CARRIAGES (2), FEED BED ROD LOCKS (2),
CENTERS (5), PINCH ROLLS (6), TUBE DRIVERS (2), "V" TROUGH, LOAD TABLE,
HYDRAULICS, ELECTRONICS.
FULL RING DIE DESIGN WITH 24" STROKE,
AUXILLIARY GUIDES, MANDRELS,
(2) SERVO DRIVES FOR FEEDING
ROD LOCK TURNING,TOUCH SCTEEN CONTROLS.
