SCHUMAG IIB DOUBLE COMBINED DRAWING LINE FOR COPPER TUBE
Our stock number:
116343
Click on picture below for larger version

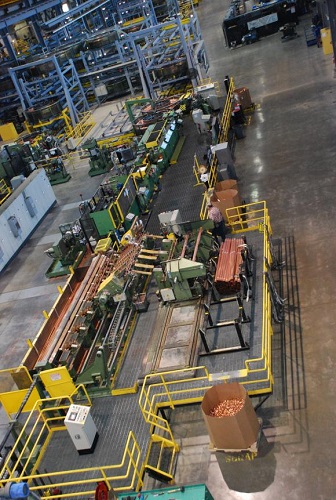

SCHUMAG IIB DOUBLE COMBINED DRAWING LINE FOR COPPER TUBE
MANUFACTURER - SCHUMAG
TYPE - COMBINED DRAWING LINE
DRAWING MACHINES - IIB/12 & IIB/8
DRWING MACHINE TONNGAGE - 12 TON (120 KN) & 8 TON (80 KN)
DRAWING SPEED 1ST MACHINE - 50M/MIN (32 - 162 FPM)
DRAWING SPEED 2ND MACHINE - 70M/MIN (32 - 230 FPM)
MAX TUBE DIAMETER - 57MM ( 2.25")
TUBE RANGE
2.125" (54MM) AT ENTRY
1.90" (48MM) AFTER FIRST DRAW
1.525" (38MM) AFTER SECOND DRAW
LINE CONSISTS OF:
(2) POINTERS PRIOR TO EACH DRAW
TWO CONTINUOUS SCHUMAG DRAWING MACHINES
INLINE CUTOFF
VELOCITY COMPENSATOR BETWEEN BOTH DRAWING MACHINES

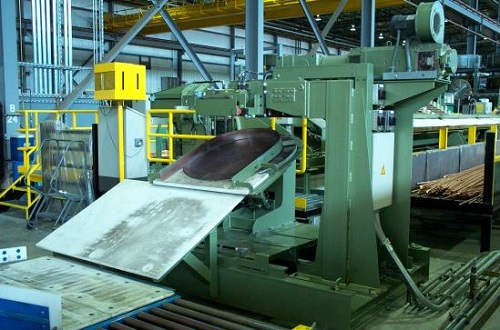

BENDING UNIT AND RECOILER
TWO HYDRAULIC SKIDS, ONE FOR EACH DRAWING UNIT
PAYOFF AND RECEIVING BASKET ROTATORS
