OTO MILLS 76MM DIA X 6MM WALL TUBE MILL MODEL 766, Mfg-2005 UNUSED,   Our stock number: 114302



TECHNICAL SPECIFICATIONS

MATERIAL..................Carbon steel 360N/mm2
STRIP WIDTH ...............78mm to 250mm
STRIP THICHNESS.............2mm to 6mm
TUBE DIAMETER.............25.4mm to 76.2mm
SQUARE PROFILE SECTIONS.......20 x 20mm to 60 x 60mm
RECTANGULAR PROFILE SECTIONS....20 X 40mm TO 80 X 80mm
MAXIMUM SPEED.............140 m/min
COOLING SYSTEM..............Emulsion 600 l/min max
WELDING SET-UP.............High Frequency
Line Direction...............Right to Left
AS DELIVERED FROM OEM;

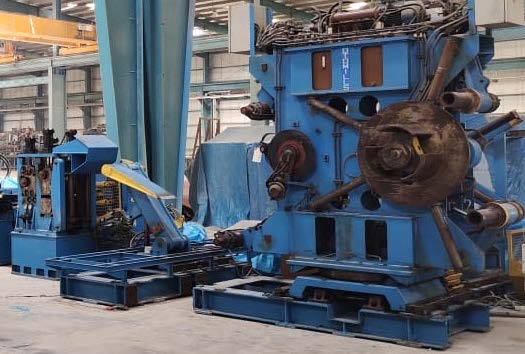

1 - Uncoiler, Double end w/Hydraulic Expansion

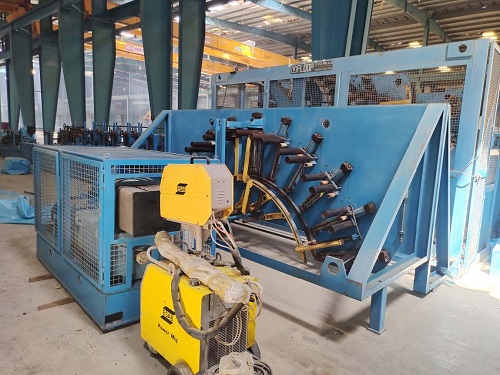

1 - Shear End Welder, Semi- Auto
1 - Accumulator, "Floop" Vertical type

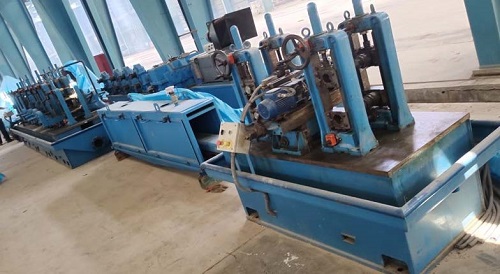

TUBE MILL with (3) -DC Motors
Universal Driven
Single Point Adjustment

FORMING SECTION
1 - Entry Side Guide Rolls & Vertical Stand
4 - Breakdown Stands
6 - Idle Side Rolls
3 - Driven Fin Stands

WELDING SECTION:
1 - Seam Guide Stand
1 - 3-Roll Weld Box
1 - Scarfing Station

SIZING SECTION
3 - Driven Sizing Stands
3 - Idle Side Rolls
1 - Straightener
4 - Turkshead 4-Roll Stands

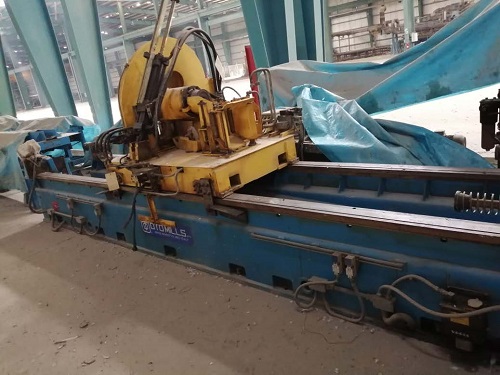

FLYING CUT OFF SAW
RELIANCE CONTROLS, SIEMENS S7 PLC















------------------------------------------------------------------------------
