2 1/2" x 0.120" TUREK & HELLER STAINLESS STEEL TUBE MILL, TIG TYPE
Our stock number:
114963
Click on picture below for larger version
Manufacturer....................... TUREK & HELLER
Model.............................. WU-20-10
Serial #...............................1094
Line Direction..................... Left to Right
O.D. Capacity...................... .625 - 2.5"
Wall Thickness..................... .020 - .120
Speed.............................. Up to 25 FPM
Consisting of:
LITTELL PAYOFF REEL
Single Coil .......40OOlb. capacity
Electric brake,
Coil I.D.........15"-20"
Max. Width.......12"

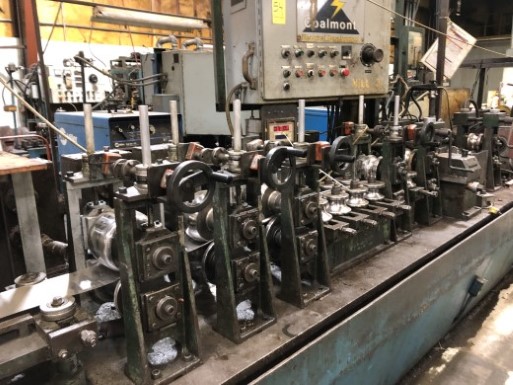

TUREK & HELLER TUBE MILL
Universal Drive, Single Point Adjustment, 2 motors

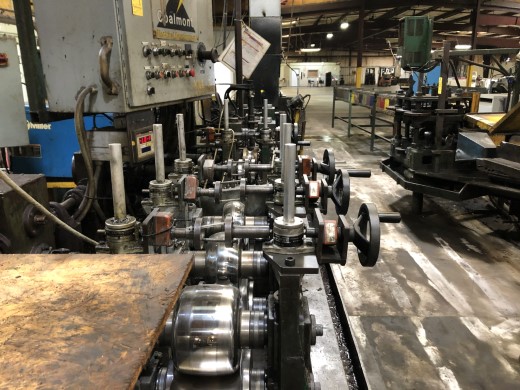

FORMING SECTION:
Entry Strip Guide
Shaft Diameter.........2.00"
3 Forming Stands
Roll Space........9"
Horizontal Centers...12"
Vertical Centers....5-1/2" to 7-1/2"
Side Roll Cluster, 4 Passes
2 Fin Stands
Roll Space........4-1/2"
Horizontal Centers...15"
Vertical Centers....5-1/2" to 7-1/2"
Motor Drive...........____HP, DC Volt

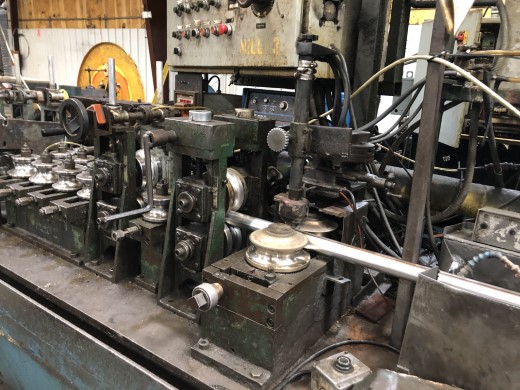

WELDING SECTION, TIG
Weld Box ....2 roll
Main welder: Gas control system for Argon, Nitrogen,
Welder...Miller Gold Star 452 CC-DC Welding Power Source
1 Pull-Out Vertical Stand (Could be used to Bead Roll)
IB-LINE INDUCTION ANNEALING
Ajax Tocco Inductron, Mfg. 2006
Model DL293-150-3/10-08H
150 KW, 3/10 K-Hz
Pyrometer Temperature Gauge
IRCON Modline 3, Digital readout

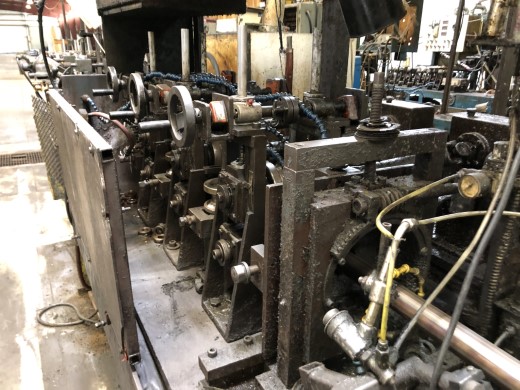

SIZING SECTION
3 Sizing Passes
Roll Space............4-1/2"
Horizontal Centers......15"
Vertical Centers.........5-1/2" to 7-1/2"
Straightening Head
Coolant System
Motor Drive .............___HP, DC Volt
CUTOFF SECTION
Flying Cutoff Saw
Pneumatic Die Accelerator
Pneumatic Clamp
Runout Trough
Mill Dynamics Main Motor Drive, Solid State

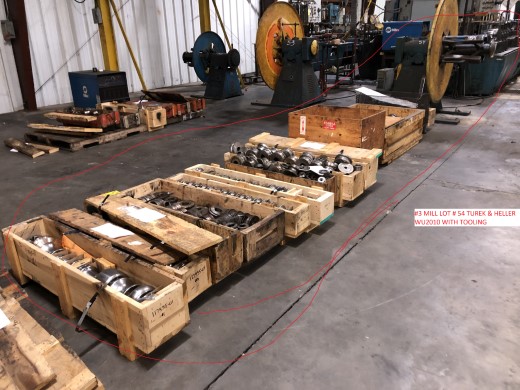

AVAILABLE TOOLING...1.00", 1.050", 1.75", 2.00", 2.25"
