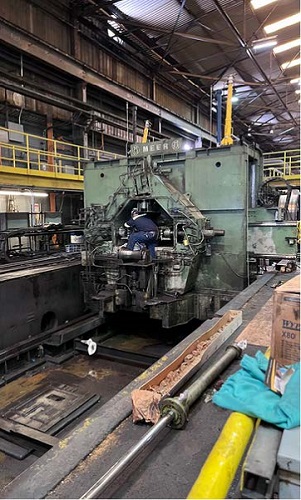

Click on picture below for larger version

Manufacturer - Torrance/SMS
Type - ERW Tube Mill
Material - X42-X80
Tube Diameter -10.75" - 24"
Entry Strip Width - 31" - 76.5"
Wall Thickness - 0.250" - 0.625"
Tube Length - 25' - 80' (based on current configuration)
Entry Feed line - with Guild accumulator
Edge Treatment - Dual Head SMS Edge Milling, 100 kW Per head
Forming - SMS Linear Forming / 3 Stand Fin/ 5 Stand Sizing
Scarfing - ID/OD Scarfing
High Frequency Welder - EFD Induction WeldacG2 1800 kW
Seam Annealing - (4) Inductoheat Seam Annealers
Rotary Cutoff - SMS Traveling Rotary
Offline Cutoff
(2) Bevelers
(2) Hydrostatic Testing - 3000 & 5000 ps
Online & Offline UT - AUT Systems
Annual Tonnage Capacity: 400,000
Total Square Footage: 188,000 (17465 Sq Meter)
Status: Installed in Plant

ID/OD Marking - Reajet ID/OD Marking Units
Material Handling - Pipe Conveyance Throughout Mill
Various Tooling Sizes - Complete List of Tooling Available Upon Request

Line Components include:

(2) Entry Coil Cars

Uncoiler

Peeler

Leveler/Flattener with Side Guides

Guild Shear & Welder (cross-weld)

Catenary Side Guides & Pinch Rolls

Looping Pit

30 Degree Entry Twist Stand

60 Degree Entry Twist Stand

Guild Accumulator

60 Degree Exit Stand

30 Degree Exit Stand

SKELP UT

Dual Head Edge Milling Unit

Linear Cage Forming

Fin Pass

EFD Weldac Welder

ID/OD Scarf

(4) Head Inductoheat Seam Annealers

Driven Pull Out Roll

Water Quench

(5) Sizing & Straightening Stands

Mill Ultrasonic Testing

Traveling Cutoff

Tube Stencil Marking Equipment

Offline Prove-Up Assets

Stationary Offline Cutoff

(2) Beveller Machines

3000 PSI & 5000 PSI Hydrostatic testers

North/South Final seam Ultrasonic Testing

Pipe Inspection

Pipe length measurement

Pipe weight scales

Automated pipe stenciling unit

Multi-Flow Pipe Conveyance Throughout ERW mill

Electrics, controls, hydraulic units and operators controls Throughout ERW

mill

Additional Information Available Upon Request
