DIRECT FORMING TUBE WELDING LINE MODEL FCF 400 / 6.0 - 100 FCF
Our stock number:
115561
Click on picture below for larger version

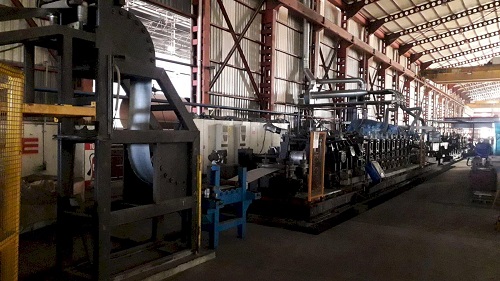

Flexible Cold Forming Rafted Mill with Spare Set of Rafts
Year 2007
Auto Tooling Change
Mair Packaging Line
Thermatool Solid State Welder

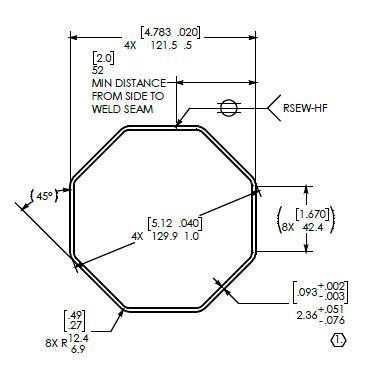

Featuring: Octagonal Shape Forming Tooling for the Solar Panel Industry
Strip Width: 150mm - 400mm
Strip Thickness: 1.5mm - 6.0mm
Tensile Strength: 500N/mm2
Line Speed: 100 Meters/Min
Max Square: 100mm x 100mm
Square Min: 40mm x 40mm
Rectangular Hollow Section: Min 60mm x 40mm / Max 120mm x 80mm Tube Lengths: 4
Meter / 8 Meter Auto
Tooling Change for Squares & Rectangles
Coil Weight Capacity: 20,000#
Coil ID: 508mm - 608mm
Coil OD: 1500mm - 1900mm
Mandrel Uncoiler
Hydraulic Expansion
Hold Down
Top & Bottom Ride Rolls
Coil Car
Peeler Hold Down Roll
Flattener
Roll Design
Entry Pinch Rolls
Ultrasonic Sensor
Shear & End Welder
Double Cut Shear
Strip Clamp
Welding Gap Adjustment
Horizontal Accumulator
Forming & Welding Squares and Rectangles

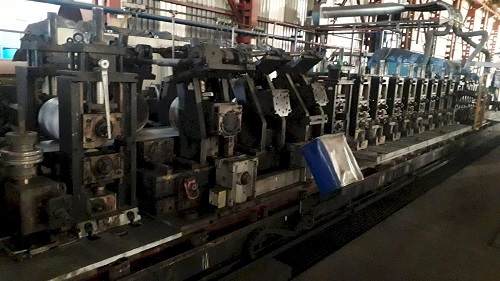

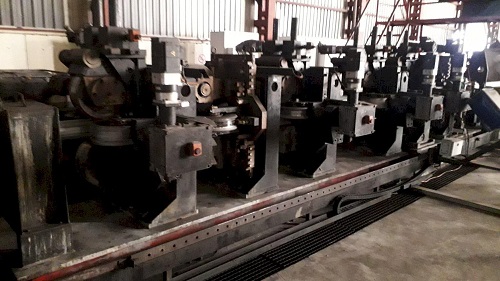

FCF Direct Forming Mill
Rafted Design with Spare Raft
Auto Tooling Adjustment
2 Entry Edge Guide Stands
FCF Block 1 with Auto Tooling Change
3 Roller Stands
U Profile Forming
Intermediate Stand / Pinch Roll Stand
FCF Block 2 with Auto Tooling Change
3 Roller Stands
C Profile Forming
FCF Block 3 with Auto Tooling Change
3 Roller Stands
Final Forming
3 Intermediate Stands
(3) 79.5 KW DC Drives
NEW in 2017
Rafted Base for Octagonal Forming. (Replaces FCF Stands 2 and 3)

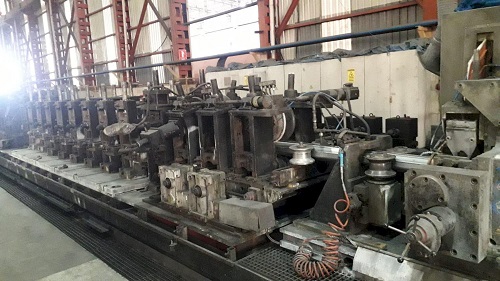

8 Stand Octagonal Forming Mill on a Rafted Base.
8 Side Idler Rolls
Single Point Adjustment
Universal Drive Mill
350 kW Thermatool Solid State Welder
Pruftechnik Eddy Current Tester Model Eddycheck 5 with Digital Readout
Leibinger Jet 3 Printing
FCF Sizing Stands
4 Driven Stands
4 Roll Design
Motorized Roll Adjustments
151 KW DC Drtive
2 Turks Heads with with Motorized Adjustment

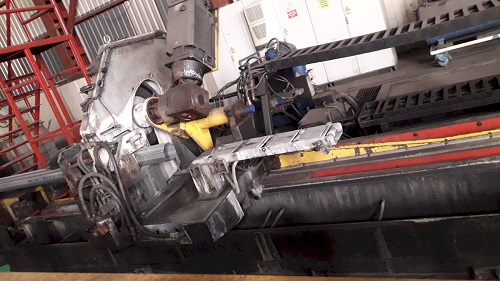

Flying Cold Saw Cut Off
151 KW DC Rack & Pinion Accelerator
18.5 KW AC Saw Motor
Variable Hydraulic Clamping Pressure

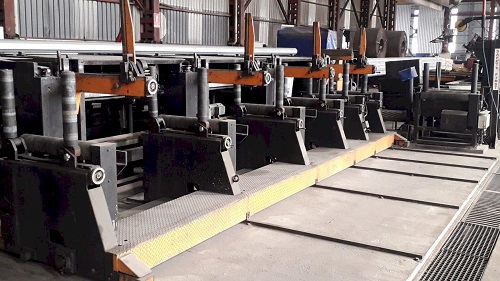

Mair Packaging Line
Driven Rollway Conveyor Model VIA200/120 with Reject Collection Packaging
Machine Model SQ90/D/4/SL
Tube Orientation Devive Packaging Arms for Stacking Rows of Tubes
Bundle Formation Table Bundle
Transfer Conveyor with Storage Chains
Drainage Station with Bundle Tilting
Weighing Station Model KG8/DY
Management Information System Model Datapack 6/T Siemens
Touch Screen Operator Control Station Siemens S7 PLC
