.250" (6mm) McKenica Precision Small Diameter Tube Mill (1998)
Our stock number:
116224
Click on picture below for larger version
Manufacturer: McKenica
Type: Tig Mill
Manufactured: 1998
Mill Speed: 12 to 14 FPM
Mother Tube Forming : .300"
Finish Tube: .250"
Material: 316 Stainless / 825 Incoloy
Wall Thickness: .028" to .035" (Tooling for .049")
Shaft Diameter: 1 1/4"
Direction: Right to Left
Application:
Copper & plastic cable is intertwined with Stainless or Incoloy strip and
formed directly in tube mill making finished traverse wound encased cable
tubing.
Complete Mill with the Following Components:
2500# x 60 OD x 18" W Double End COE Industries Uncoiler
Mdl. CPR-DE-PO-2518
Kent Shear and End Welder
Kent Mdl. Mdl. 10065PMAHSC
Lincoln Electric Square Wave Tig 175 Pro Welder
Free Band Accumulator w/ Entry Power Pinch Roll
Hall Industries Core Capstan Payoff for Insulated Copper Cables
Wire Dancer, Feeder and 2-Plane Straightener Feeding directly into Forming
Section of Mill
Strip/Cable Combine Station (Intersection Flat Strip with Insulated Cable)

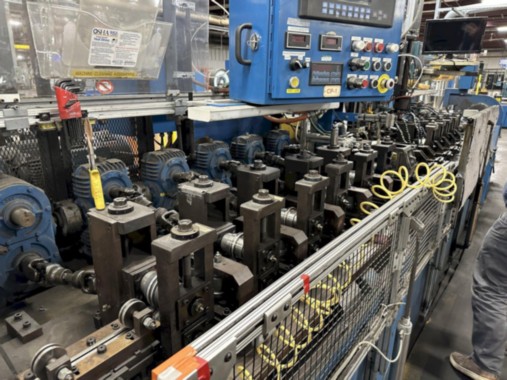

Forming Mill
3 Forming Stands
3 Fin Stands
5 Idle Side Roll Passers
20 HP, 1760 RPM Allen Bradley AC Motor Drive
230/460 Volt
Universally Driven

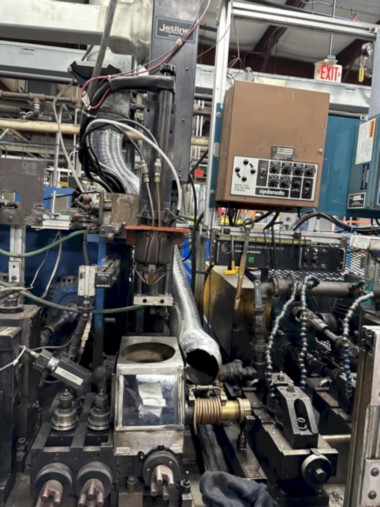

Welding Section
4 Roll Cluster
2 Roll Weld Rolls
Jet Line Mdl ALC401-6 TIG Welding System with Miller Welding Supply & (2)
Miller Coolmate 4 water coolant units
Welder Camera System
Cyclomatic 90A Arc Pattern Control
Jetline Series 9500 Controller
5 Sizing Reduction Stands
5 Idle Side Rolls
20HP, 1760 RPM Allen Bradley AC Motor Drive
230/406 Volt
Universally Driven
Pruftechnik AG Eddy Current Eddychek S Tester
Mdl. Lab 3952UM 9
Roller Weld Bead Planisher / Conditioner
Beta Lasermike Measuring Unit
Camam Tube Polisher W/ Tiger Vac Collection System
Tube Footage Counter
Hall Industries Traversing Spooler
50" x 32" x 32"
50,000 Feet Capacity
Includes Controls, Hydraulics, Electrics - Allen Bradley Powerflex 753 Drives
Allen Bradley Panelview 900 Mill Controls Display
Installed
