60.5MM KUSAKABE STAINLESS STEEL RAFTED LASER TUBE MILL
Our stock number:
116390
Click on picture below for larger version
MANUFACTURER - KUSAKABE
LASER MANUFACTURER - COHERENT-ROFIN
YEAR - 2004 TUBE MILL & 2018 COHERENT-ROFIN
TYPE - RAFTED LASER TUBE MILL
Tube Diameter Range: .413"-2" (10.5mm-60.5mm)
Wall Thickness Range: .031"-.078" (.8mm-2mm)
Line Speed: 6'-98'/min (2-30m/min)
MPa - 580
Line Configuration Left to Right
Tooled for the following sizes
MM INCH
17.00 0.675
25.40 1.000
28.60 1.125
35.00 1.375
38.10 1.500
50.80 2.000
54.00 2.125
2004 Kusakabe Uncoiler with Peeler Hold Down Roll

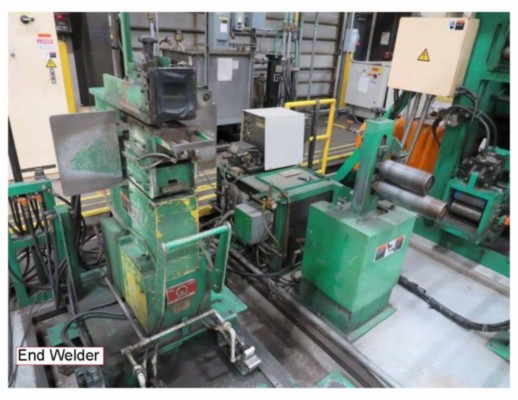

Kusakabe Shear and End Welder
Kusakabe Vertical Accumulator
Two Sets of Entry Edge Guides

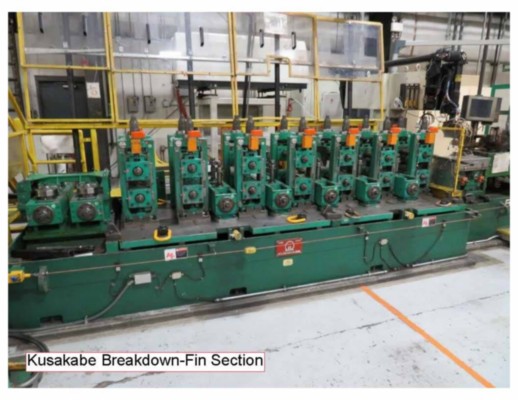

2 each Rafted Kusakabe Forming Group
3 Break Down Stands
4 Fin Passes

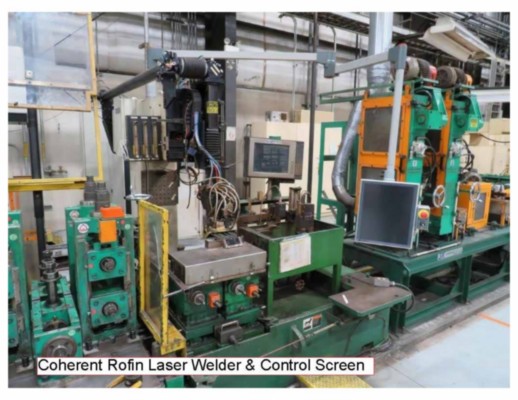

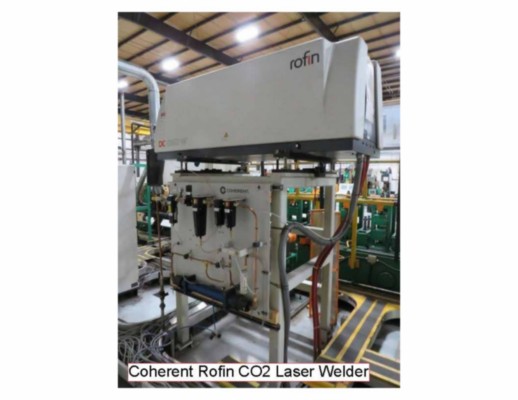

2018 Coherent-Rofin DC080 W CO2 Laser Welder
Serial # 3216/3217
De-oxidizing Chamber

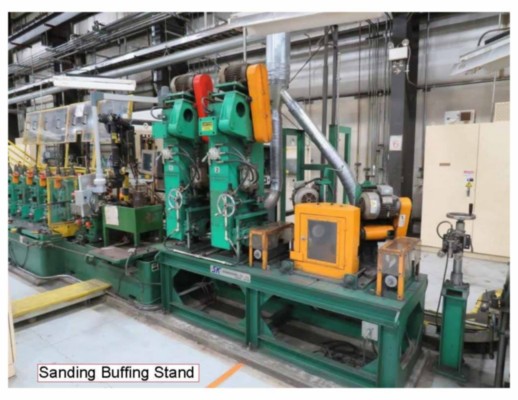

Polishing Section
Caterpillar Drive
Seam Annealer

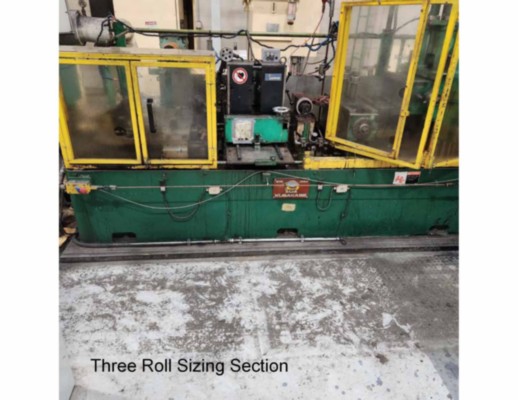

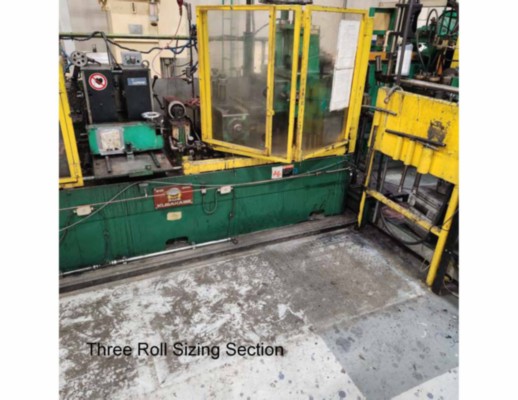

2 each Rafted Three Roll Sizing Head
Turks Head
Ink Jet Printer for Labeling Pipe
Rotary Flying Cut Off
Dump Table with Tube Rack
Many Spare Components & Parts
Available Separately:
2012 Coherent-Rofin DC060 W CO2 Laser Welder
Serial # 2572/2572
