3" (76mm) x .120" (3mm) OTO Mills Rafted Tube Mill Line Year 2006   Our stock number: 116472

3 (76mm) x .120 (3mm) OTO Mills Rafted Tube Mill Line Year 2006

Click on picture below for larger version
3 (76mm) x .120 (3mm) OTO Mills Rafted Tube Mill Line Year 20063 (76mm) x .120 (3mm) OTO Mills Rafted Tube Mill Line Year 20063 (76mm) x .120 (3mm) OTO Mills Rafted Tube Mill Line Year 20063 (76mm) x .120 (3mm) OTO Mills Rafted Tube Mill Line Year 2006


Tube Diameter: 3 inches
Max. Wall Thickness: .120 inches

Equipped With

General Specifications:
Tube OD Range: .840"-3" (20mm-76mm)
Wall Thickness Range: .040"-.120" (1mm-3mm)
Max Line Speed: 400 FPM (120m/min)
Tube Length Range: 10'-20' (3000mm-6000mm)
Max Tensile Strength: 90,000 PSI
Max Yield Strength: 65,000 PSI
Coil Width: 1.5"-10" (38.1mm-254mm)
Coil ID: 20"-24" (508mm-610mm)
Coil OD: 45"-78" (1100mm-2000mm)

Elle Tre Electrics

OTO Double End Uncoiler

OTO Automatic Shear End Welder

Miller Power Supply

Entry Guides (Ardcor 5 Roll Entry)

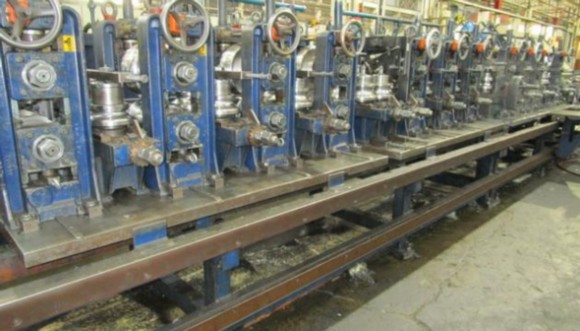

(4) Forming Stands - Single Point Adjustments
75KW AC Motor
Rafted Set of Stands

(3) Fin Stands - Single Point Adjustments
75KW AC Motor
Rafted Set of Stands

Weld Box

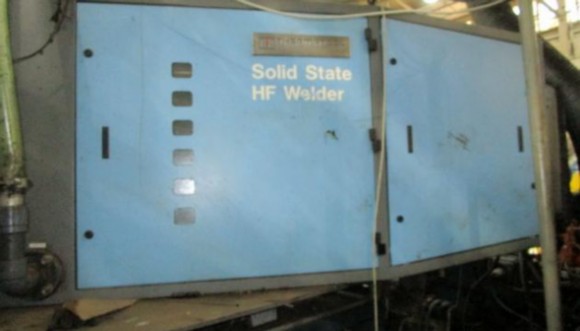

Thermatool Solid State Welder

12' Cooling Section

Brushing Section

(4) Sizing Stands
Single Point Adjustments
75KW AC Motor
Rafted Set of Stands

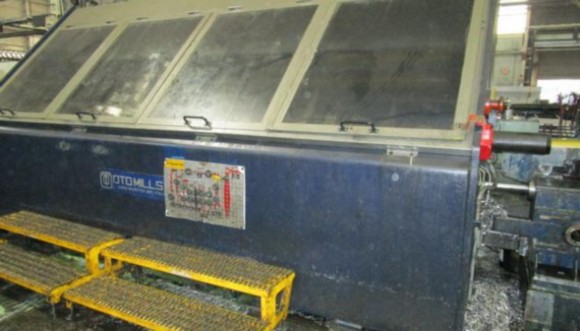

OTO Double Die Cuttoff
N# 8493
2006
Type: OTO Cut 120

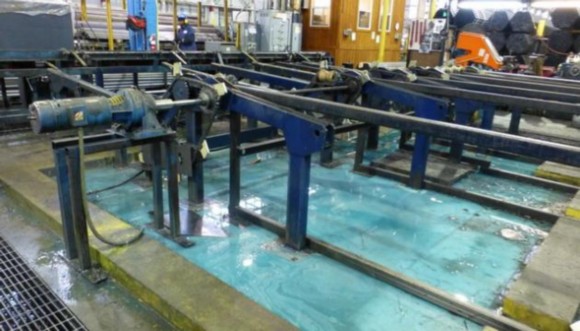

30' Runout Table

Dump Table

Tooling for Rounds, Squares and Rectaangles

Spare Parts
