Click on picture below for larger version

Tube Diameter: 2.5 inches
Max. Wall Thickness: .120 inches

Equipped With

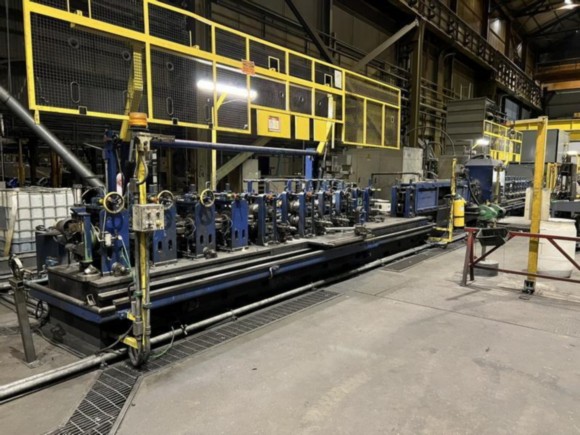

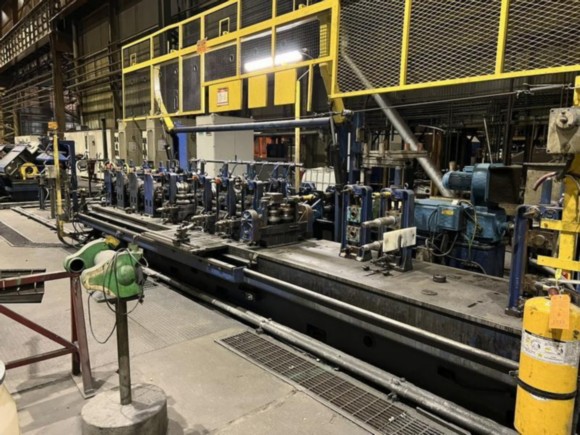

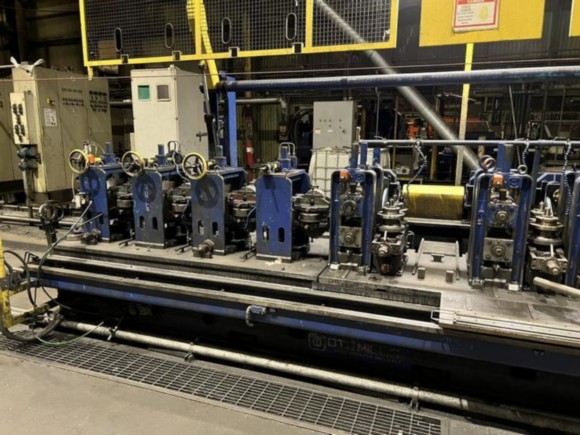

Oto Mills High Speed Tube Mill Line
Rafted Bases

Tube Diameter: .623" - 2.500" (16mm - 63.5mm)
Wall Thickness: .040" - 118" (1.0mm - 3.0mm)
Max Line Speed: 400 FPM (120 Meters/Min)
Lengths: 13' - 29' (4M - 9M)

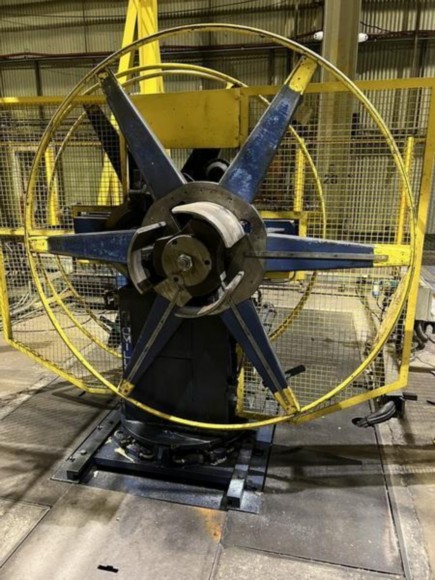

Oto Mills Double End Uncoiler
Hydraulic Expansion
Drag Brake
Coil Holder

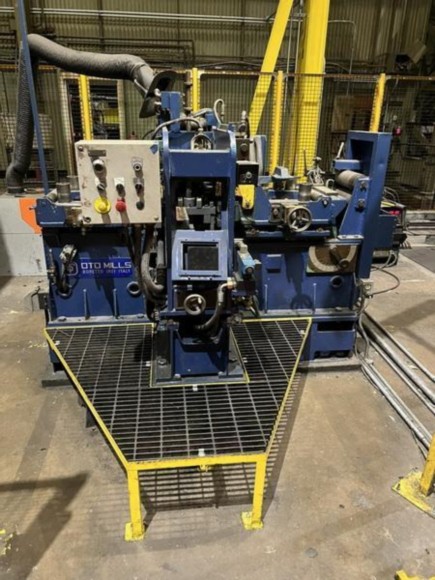

Oto Mills Automatic Shear & End Welder
Oto Mills Vertical Floop

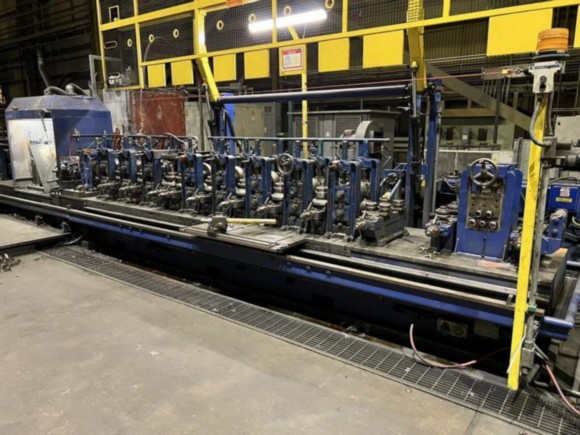

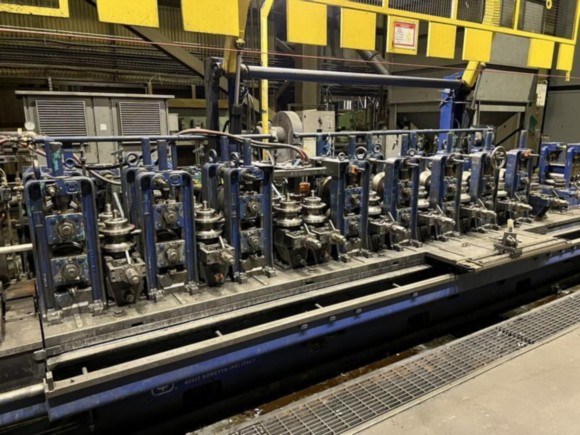

Oto Mills Forming Mill
Rafted Bases
Universal Drive
Single Point Adjustment
(2) 80KW DC Drives
2 Speed Gear Boxes
2 Sets of Entry Guides
5 Roll Flattener
2 Sets Entry Edge Guides
5 Forming Stands
4 Side Idler Roll Stands
3 Finn Pass Stands
2 Side Idler Roll Stands

250 KW Emmedi High Frequency Welder
2 Roll Weld Box
Entry Seam Guide Roll
2 OD Scarfing Stands
Cooling Trough

Oto Mills Sizing Mill
Rafted Bases
Universal Drive
Single Point Adjustment
80 KW DC Drive
2 Speed Gear Boxes
3 Sizing Stands
3 Side Idler Rolls
1 Sizing Stand
4 Turks Head

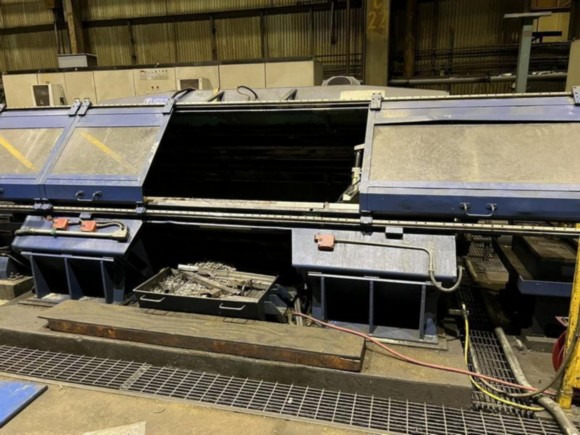

Oto Mills Flying Double Cut Cut-Off
Inclined
Run Out Table

Eltav 5 Motion Controller
Digital Readouts
Ellytre Electrics
ABB Digital Drives

Mair Packaging
New in 2005
Sortation Table
Stacker
Bundle Run Out Conveyor
Bundle Tilting Siemens
Touch Screen Controls

Tooling for the following: 20mm, 22mm, 1.0 Rn, 1.0" Sq, 1.25" Sq, 1.5" Sq, 2"

Sq, 1.5" Rn, 1-5/8" Rn, 1 x 2" Rt, 2.375 rd, 40mm, 1.66" rd, 1.90" rd
