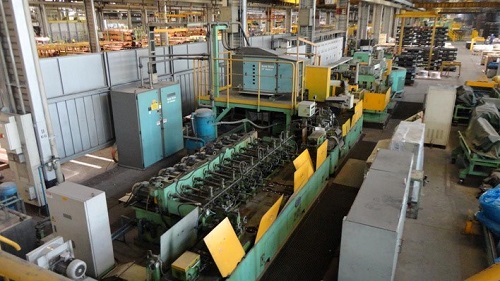

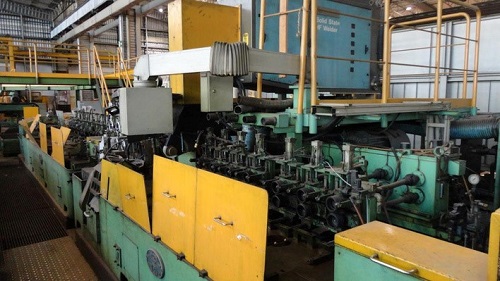

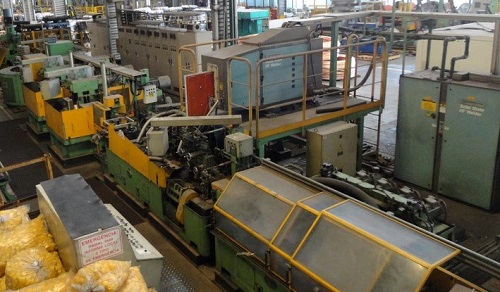

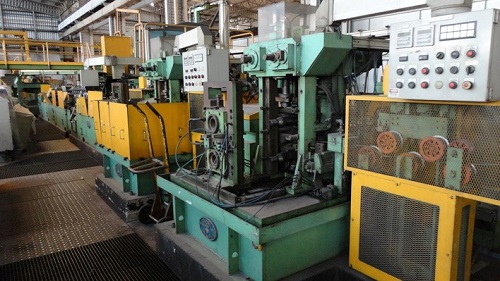

15.87MM X .80MM MORI MIU-30 RAFTED TUBE MILL

SPECS:
MODEL: MIU-30 TYPE TUBE MILL
MANUFACTURER: MORI MACHINERY CORPORATION
CONSTRUCTION YEAR: 2003
ALLOY: COPPER STRIP UNS C12200
FINAL MATERIAL: WELDED INNER GROOVED COPPER TUBES FOR REFRIGERATION AND AIR-

CONDITIONED INDUSTRY
TYPE OF WELDER: HF - HIGH FREQUENCY

MAIN MATERIAL SPECIFICATION:
WIDTH OF ENTRANCE STRIP: 20 - 55 MM
STRIP THICKNESS: 0.30 - 0.80 MM
STRAIGHTNESS OF THE ENTRANCE STRIP: 1/1000 MM
STRIP WIDTH TOLERANCE: 0.04 MM
STRIP THICKNESS TOLERANCE: 0.01 MM
ID FOR UNCOLIER: 450 MM
OD FOR UNCOILER: <= 1500 MM
WEIGHT FOR UNCOILER: <= 450 KG
FINAL DIMENSION OF TUBES: O 6.35 MM ~ O 15.87 MM.
TUBES TOLERANCE: 0.04 MM
WORKING SPEED: MAX. 200 M/MIN. 2

COMPONENT LIST INCLUDES:
UNCOILER
SHEAR & WELDER AND DANCER ROLL
HORIZONTAL ACCUMULATOR
EMBOSSING STAND
FORMING SECTION
WELDER
SIZING SECTION
ROTARY PRESS CUTOFF
TUBE WINDER TURNTABLE
WATER AND EMULSION TANK
BASIC LAYOUT
