BAIRD #1 AUTOMATIC WIRE FORMING FOUR-SLIDE MACHINE   Our stock number: 62296

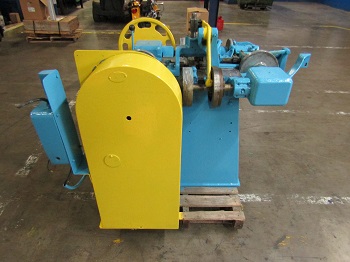

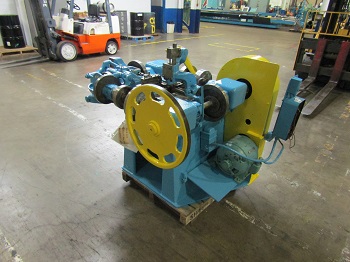

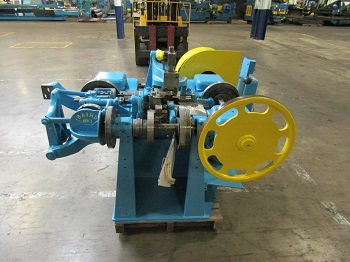

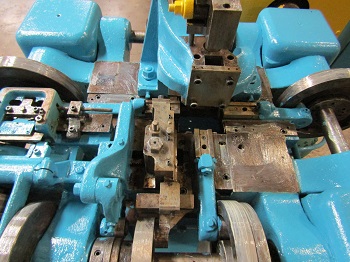

BAIRD #1 AUTOMATIC WIRE FORMING FOUR-SLIDE MACHINE

Click on picture below for larger version
BAIRD #1 AUTOMATIC WIRE FORMING FOUR-SLIDE MACHINEBAIRD #1 AUTOMATIC WIRE FORMING FOUR-SLIDE MACHINEBAIRD #1 AUTOMATIC WIRE FORMING FOUR-SLIDE MACHINEBAIRD #1 AUTOMATIC WIRE FORMING FOUR-SLIDE MACHINE


MAXIMUM DIAMETER SOFT STEEL WIRE........... 3/32"
STANDARD WIDTH RIBBON METAL................ 3/4"
MAXIMUM FEED LENGTH USING FEED SLIDE STOPS. 6"
MAXIMUM FEED LENGTH NOT USING SLIDE STOPS.. 7-1/4"
STROKES WITH CAMS: FRONT SLIDE CAM........ 1"
REAR SLIDE CAM......... 7/8"
SIDE CAMS.............. 1-5/8"
VERTICAL............... 13/32" - 57/64"
BED OPENING (L-R) X (F-B).................. 4-3/4" X 4-1/2"
DIAMETER OF CAM SHAFTS..................... 1-9/16"

EQUIPPED WITH:- POSITIVE FEED
SPLIT CAMS
DOUBLE GIB SLIDES
POSITIVE STOP CHECK
STRIPPER WITH FLAT FACE FORM BRACKET
MECHANICAL CLUTCH
AC MOTOR AND CONTROLS
