RUOFF NOTCHER
Our stock number:
116813
Click on picture below for larger version

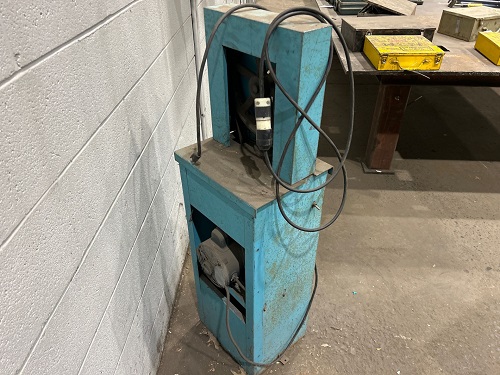

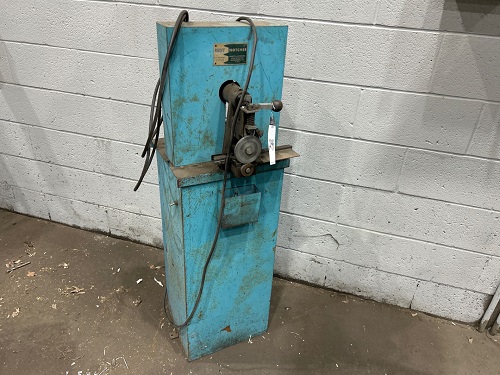

RUOFF NOTCHER
THE RUOFF NOTCHER IS A PUNCH PRESS WITH AN ADJUSTABLE AUTOMATIC FEED. IT IS
PRECISION DESIGNED FOR PUNCHING VARIOUS SHAPES ALONG THE EDGE OF SHEET METAL.
SHEET STEEL, GALVANIZED IRON, ALUMINUM, PLASTICS, CARDBOARD, OR ANY SHEET
MATERIAL THAT CAN BE PUNCHED, CAN BE HANDLED BY THE RUOFF NOTCHER.
INSTALLATION OF A RUOFF NOTCHER IS EASILY HANDLED IN LESS THAN FIVE MINUTES.
STANDARD PUNCH AND DIES PROVIDE EITHER A 15 DEGREE NOTCH OR A 3/32" SLOT.
OTHER PATTERNS ARE AVAILABLE FOR YOUR RUOFF NOTCHER.
OVERALL DIMENSIONS: 18" W X 12" D X 50" H
SPEED: FROM 20 FEET PER MINUTE (240 PUNCHES PER MINUTE) UP
ADJUSTMENTS: CENTERS OF NOTCHES ARE ADJ. UP TO 1 1/8" MAX.
DEPTH OF NOTCHES ADJUSTABLE UP TO 7/8" MAX
ELECTRICAL: 115/230VOLTS A-C, 11/5.6 AMPS. , 3/4 H.P.
GAUGE: UP TO 16 GAUGE MILD STEEL
20 GAUGE STAINLESS
OTHER MATERIALS IN PROPORTION TO SHEAR STRENGTH
(.060 MAX. THICKNESS)
